Specifications for

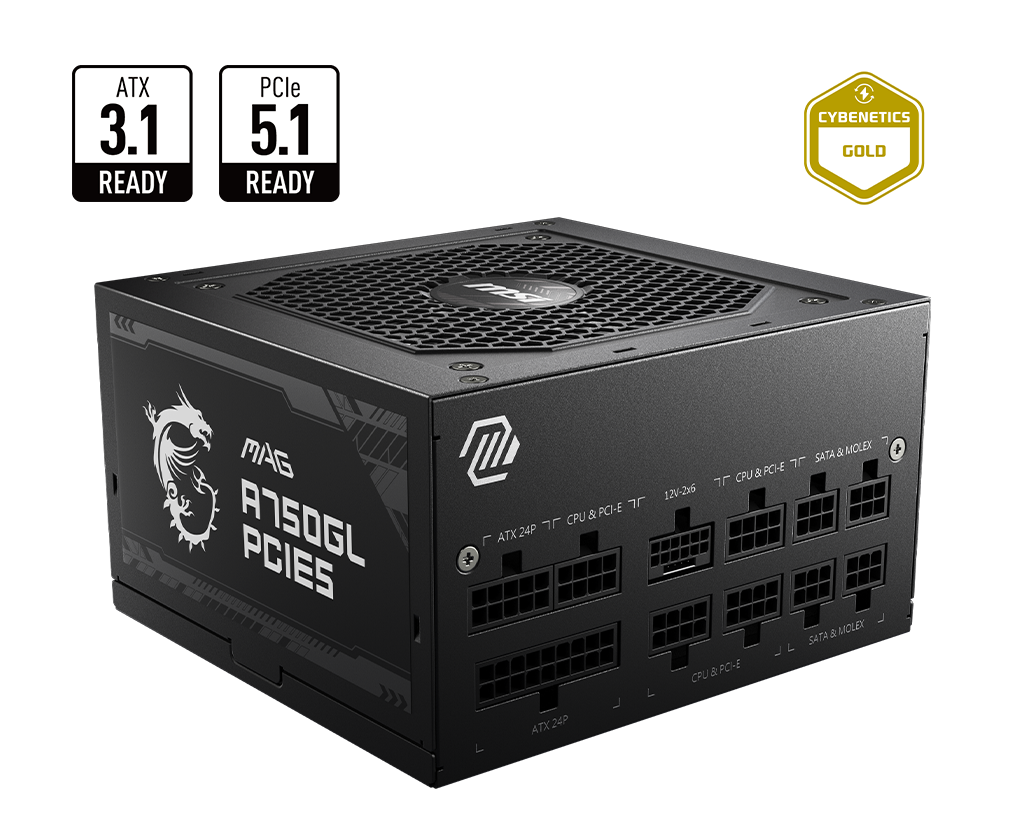

MAG A750GL PCIE5
FDD (4 pin)
FDD (4 pin)
1
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
SATA (15 pin)
SATA (15 pin)
8
PFC Type
PFC Type
Active PFC
PCI-E (6+2 pin)
PCI-E (6+2 pin)
3
Dimensions (DxWxH)
Dimensions (DxWxH)
140 x 150 x 86 mm
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (450W)
Fan Size
Fan Size
120 mm
EPS (4+4 PIN)
EPS (4+4 PIN)
2
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
47-63Hz
Input Voltage
Input Voltage
100~240 VAC
Power Excursion
Power Excursion
1500W (*up to 200% of the PSU's rated power for 100μs)
Power Watt
Power Watt
750W
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Modular
Modular
Yes (full modular)
Efficiency Rating
Efficiency Rating
80 PLUS Gold (up to 90%)
