Specifications for

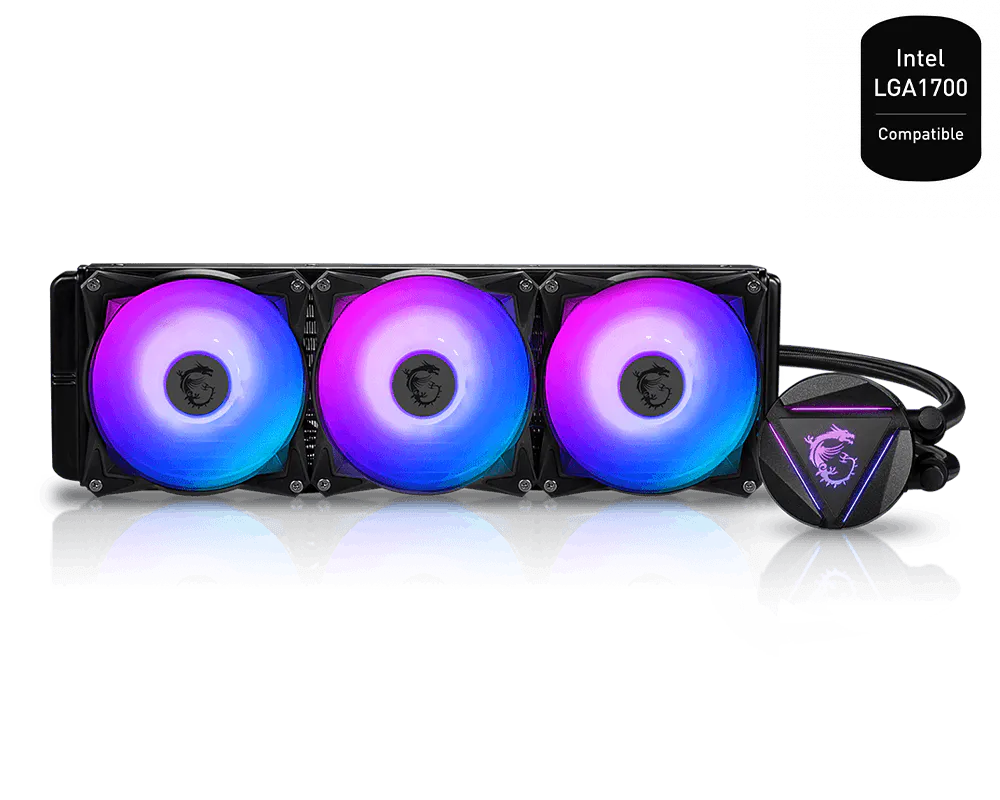

MAG CORELIQUID 360R V2
Number of Fans
Number of Fans
3
Fan Dimensions
Fan Dimensions
120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Speed
Fan Speed
500 ~ 2000 RPM
Fan Power Consumption
Fan Power Consumption
1.8 W
Fan Rated Current
Fan Rated Current
0.15 A
Fan Rated Voltage
Fan Rated Voltage
12V DC
Fan Bearing
Fan Bearing
Two Ball Bearing
Fan Noise Level
Fan Noise Level
14.3 ~ 34.3 dBA
Fan Air Flow
Fan Air Flow
21.63 ~ 78.73 CFM
PWM Mode
PWM Mode
Yes
Radiator Material
Radiator Material
Aluminum
Radiator Dimensions
Radiator Dimensions
394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches
Block Dimensions
Block Dimensions
80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
Pump Speed
Pump Speed
4200 ±10%RPM
Pump Power Consumption
Pump Power Consumption
4.08W
Intel Socket
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 1366/2011/2011-3/2066
LGA 1366/2011/2011-3/2066
AMD Socket
AMD Socket
AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
SocketTR4/sTRX4/SP3
SocketTR4/sTRX4/SP3
Accessories
Accessories
1 to 3 Fan PWM cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
Noise reducer cable x 1
PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
Noise reducer cable x 1
